Tank sender units which can be adapted to fit most tank configurations
| Product | Range | Description | OE Part No | Application |
|---|---|---|---|---|
| FT2230-00 | Other | Bentley Continental Six Hole Flange | ||
| FT3331-02 | Triumph | TR2- TR3 237mm Radius 80 Degrees Full-Empty | ||
| FT3331-02BIM | Triumph | TR2-TR3 237mm Radius Full-Empty Bimetal Characteristic | ||
| FT3334-50 | Lotus | Side Mounted 6 Hole | ||
| FT5300-28 | JAGUAR | 6 hole fixing MK7 L/H 80 degree swing 191mm arm radius | LH 76788 | |
| FT5300-29 | JAGUAR | 6 hole fixing. MK7 R/H. 80 degree swing. 265mm arm radius | RH 76790 | |
| FT5300-73 | OTHER | 6 hole fixing .Morris Minor Ser 3 3-80 ohms 80 degree swing | 17H7 | |
| FT5301-06A | CLASSIC | MG Midget. 6 hole top mounted. 80 degree swing. Earth return | ||

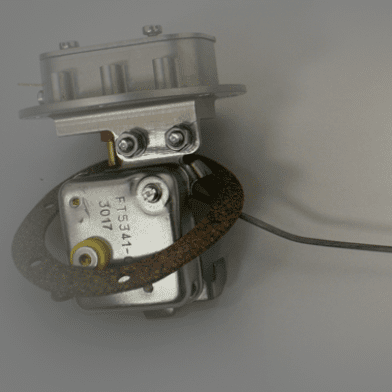

| FT5341-00 | ASTONM | Aston Martin DB4GT 6 hole top mounted earth return. Bimetal characteristic | ||
| FT5386-06 | OTHER | 6 hole top mounted. 70 degree swing. With warning light .241mm arm radius | ||
| IK6630/08AC | IND | 0-90 Resistance type. Side mounted Clip on plastic float | K916635 | |
| TA9010-000 | INTL | 5 Hole adj 6"-24" earth return 10-180 Ohms char blade terminal | ||
| TA9010-000Q | OTHER | 5 Hole adj 6"-24" earth return 10-180 characteristic blade terminal. QSP instructions | QM FLS | |
| TA9010-100 | CLASSIC | 5 Hole adj 6"-24" earth return 10-180 characteristic M4 stud terminal. | ||
| TA9010-200 | INTL | 5 Hole adj 6"-24" earth return 10-180 characteristic 8-32 stud. | ||
| TA9030-000 | INTL | 5 Hole adj 6"-24" earth return 240-33 Bimetal characteristic . Blade terminal | ||
| TA9030-100 | INTL | 5 Hole adj 6"-24" earth return 240-33 bimetal characteristic M4 stud terminal | ||
| TA9030-200 | INTL | 5 Hole adj 6"-24" earth return 240-33 bimetal characteristic 8-32 stud terminal | 903020 | |
| TA9040-000 | INTL | 5 Hole adj 6"-24" earth return 240-33 bimetal characteristic blade terminal | ||
| TA9050-100 | INTL | 5 Hole adj 6"-24" earth return 3 - 80 Ohms Blade terminal | ||
| TA9110-000 | INTL | 5 Hole adj 6"-24" earth return 10-180 characteristic blade terminal | ||
| TA9110-000R | OTHER | 5 Hole adj 6"-24" earth return 10-180 characteristic blade terminal | RTECF5H | |
| TB1104-040 | INTL | TANK UNIT | ||
| TB1114-001W | LANDROVER | Top Mounted G78/8.10v reg. Bimetal Res.6 hole fixing. Earth return. Blade terminal. 70 degree swing | ||
| TB1114-013 | OTHER | Marcos 1500 6 hole fixing bimetal characteristic | ||
| TB1114-020 | TRIUMPH | G78/8 Bimetal resistance.6 hole fixing. Anti rattle ring. Earth blade | 214465 | |
| TB1114-023 | LOTUS | 6 hole fixing. 70 degree swing. Side mounted normal pivot. Earth Return. Blade connection | 90299090 | |
| TB1114-025 | IND | G78/8.Bimetal resistance.6 hole fixing .Normal pivot | ||
| TB1114-031W | MINI | G78/8 Bimetal resistance . 6 hole fixing. 70 deg. swing. Side mounted .Earth return blade. 10v Clip on plastic float | AAU8340 | |
| TB1114-034 | MINI | G76/8 Bimetal resistance . 6 hole fixing. 90 degree swing. Top mounted .Earth return blade. 10v regulated plastic float | 71166 | |
| TB1114-035 | JAGUAR | Bimetal resistance . 70 degree swing. Side mounted .Earth return blade. 10v regulated clip on plastic float | ||
| TB1114-036 | CLASSIC | 10-180 Type. 6 hole fixing. 80 degree swing. Top mounted .Earth return blade. 10v regulated plastic float | ||
| TB1114-037 | CLASSIC | 0-8 NHM Resistance. 6 HOLE .SIDE MOUNTED.80 degree swing. Earth return. Blade connection. 10v regulated clip on plastic float. | ||
| TB1214-001W | LANDROVER | G78/8 . 10 V regulated .Bimetal resistance . 70 degree swing. Top mounted .Earth return. blade. Normal pivot. Warning light contact | 555845 | |
| TB1214-004 | JAGUAR | G78/8. 10v regulated. Bimetal resistance . 70 degree swing. Top mounted .Earth return. blade. Normal pivot. Warning light contact | 90299090 | |
| TB1214-010W | LANDROVER | G78/8. 10v regulated. Bimetal resistance . 70 degree swing. Top mounted .Earth return. blade. Normal pivot. Warning light contact | 555845 | |
| TB1234-000 | OTHER | G74/8. Bimetal resistance . 70 degree swing. Top mounted .Insulated return. 6 hole fixing. Normal pivot. Shrouded terminals | UR19863 | |
| TB1234-001 | IND | TANK UNIT | ||
| TB1414-004W | IND | G78/8 . 10 V regulated .Bimetal resistance . 70 degree swing. Side mounted . Blade. Normal pivot. Stiffened float arm | 8065703 | |
| TB1514-000 | TRIUMPH | G78/6 Bimetal resistance . 6 hole fixing. Normal pivot | 213411 | |
| TB1814-005 | IND | 6 HOLE FIXING - 90 DEGREE SWING .INSULATED RETURN | ||
| TB2114-003 | CLASSIC | G78/6 Bimetal resistance . 6 hole fixing. Close pivot | BHA4711 | |
| TB2114-004W | CLASSIC | G78/6 Bimetal Char Top mounted .Earth return. blade. Close pivot. 6 Hole fixing | AAU8337 | |
| TB2114-104 | SPARES | 6 hole fixing. 70 deg swing. Top mounted. Close pivot. Earth Return. Reinshagen Connector. RADIUS 120 | 606961 | |
| TB2114-105 | SPARES | 6 hole fixing. 70 degree swing. Top mounted. Earth Return. Reinshagen Connector. | 15651121 | |
| TB5532-008 | IND | G78/W Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Top mounted .6 Hole fixing. Blade connection. Earth return.6.35mm extension rod | 716/12400 | |
| TB5532-009 | IND | G78/10 Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Top mounted .6 Hole fixing. Blade connection. Earth return.6.35mm extension rod | 704/21100 | |
| TB5532-009A | IND | G78/10 Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Top mounted .6 Hole fixing. Blade connection. Earth return.6.35mm extension rod | ||
| TB5532-010 | IND | G78/W Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Side mounted .6 Hole fixing. Blade connection. Earth return.6.35mm extension rod | 704/21200 | |
| TB5532-011 | IND | G78/10 Euro fuel . 12 Volt .Bimetal resistance . 90 degree swing. Top mounted .6 Hole fixing. Blade connection. Earth return.6.35mm extension rod | ||
| TB5532-012 | IND | G78/W Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Top mounted .6 Hole fixing. Blade connection. Earth return .6.35mm extension rod | 716/10800 | |
| TB5532-014 | IND | G78/W Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Side mounted .6 Hole fixing. Blade connection. .6.35mm extension rod | 716/13600 | |
| TB5532-015 | IND | G78/W Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Side mounted .6 Hole fixing. Blade connection. .6.35mm extension rod | 716/13700 | |
| TB5532-018 | IND | G78 Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing. Side mounted .6 Hole fixing. Shrouded terminal connection. | 232/13303 | |
| TB5532-019 | IND | G78/W Euro fuel . 12/24 Volt .Bimetal resistance . 90 degree swing .6 Hole fixing. Blade connection. Earth return .6.35mm extension rod | 716/15100 | |
| TB5532-020 | IND | G78 . 12 Volt .90 degree swing .6 Hole fixing. Bottom mounted . Earth return . | 716/15000 | |
| TB5532-022 | IND | Bimetal resistance . 90 degree swing .6 Hole fixing. Side mounted. Earth return .Special connector | 716/15700 | |
| TB5532-023 | IND | 90 degree swing. Top mounted .6 Hole fixing. Special connector. 6.35 mm extension rod | 716/16800 | |
| TB5532-024 | IND | 90 degree swing. Side mounted .6 Hole fixing. Special connector. | 716/16600 5500079931 | |
| TB5532-025 | IND | Top mounted .6 Hole fixing. 90 degree swing. Earth Return. Arm radius 516. 135 resistance (Euro) | 716/18000 | |
| TB5532-026 | IND | 6 hole fixing. 8mm feedpipe 90 degree swing. Side mounted. Reinshagen Connector with filter supplied separately. RADIUS 221mm | 716/20200 5500079932 | |
| TB5532-027 | IND | Side mounted .6 Hole fixing. Close pivot. Float arm radius 315. | 716/21500 | |
| TB5532-028 | IND | Top mounted .6 Hole fixing. Close pivot. Float arm radius 360 | 716/22300 | |
| TB5532-029 | IND | 6 hole fixing plate with rod .Pivot depth 315.RADIUS 317.Reverse Charc. (10-180) winding (VDO).Reinshagen Connector .Earth return | ||
| TB5532-030 | IND | Top mounted.6 hole fixing .Pivot depth 4.00.Float arm radius 400.Reinshagen Connector .Earth return | ||
| TB5532-031 | IND | Side mounted .6 Hole fixing. Close pivot. Float arm radius 390. | 716/23800 | |
| TB5532-032 | IND | Close pivot. Insulated Return. Reinshagen Connector. Float arm radius 155. Resistance 180R-5R | 233/13307 | |
| TB5532-033 | IND | 5 hole Earth return tank unit with feed, return and breather pipes | 704/36100 | |
| TB5532-034 | IND | Top mounted.6 hole fixing .Float arm radius 400.Reinshagen Connector Resistance 16 OHMS full 310 OHMS empty. | 716/27500 | |
| TB5532-035 | IND | 5 hole Earth return tank unit with feed, return and breather pipes | ||
| TB5532-036 | IND | 6 Hole fixing. Side Mounted. Insulated Return. Reinshagen Connector. 70 degree swing.Float arm 3-180 ohm resistance | 716/27400 | |
| TB5532-037 | IND | 6 hole fixing with 8mm bend feed pipe.90 degree swing. VDO Charc (10-180).Reinshagen Connector .Earth return | 716/27600 5500079942 | |
| TB5532-039 | IND | 5 hole Earth return tank unit with feed, return and breather pipes | 704/38200 | |
| TB5532-040 | IND | 6 hole fixing. Side mounted.80 degree swing. 10-180 Ohms | ||
| TB5532-041 | IND | 6 hole fixing. Side mounted.80 degree swing. 10-180 Ohms | 716/28000 | |
| TB5532-042 | IND | 6 hole fixing. Side mounted.80 degree swing. 10-180 Ohms | ||
| TB5532-043 | IND | 6 hole fixing. Side mounted.80 degree swing. 10-180 Ohms | 716/28200 | |
| TB5532-045 | OTHER | Tank unit inverted. 6 hole fixing. Side mounted .90 degree swing. Insulated return. Close pivot. Shrouded terminals | ||
| TB5532-046 | IND | 6 hole fixing. 8mm feedpipe 90 degree swing. Top mounted. Reinshagen Connector with filter supplied separately. RADIUS 221 mm | 716/28700 5500079948 | |
| TB5532-047 | IND | 6 Hole fixing. Top Mounted. Insulated Return. 70 degree swing. 129 resistance | 426591-1 | |
| TB5532-048 | IND | 6 Hole fixing. Top Mounted. Insulated Return. 66 degree swing. 157 resistance | 614695 | |
| TB5532-049 | IND | Side mounted .Insulated return. Shrouded terminals.0-180 OHM resistance. 318mm radius arm. | 3193575 | |
| TB5532-050 | IND | Smithfix fixing. Top Mounted.70 degree.137 resistance. | 716/30076 | |
| TB5532-051 | IND | 6 Hole fixing. Side Mounted.90 degree swing | 704/50037 | |
| TB5532-052 | IND | 6 Hole fixing. Top Mounted. Insulated Return. 66 degree swing. 157 resistance | ||
| TB5532-053 | IND | 6 Hole fixing. Top Mounted. Insulated Return. 66 degree swing. 157 resistance | ||
| TB5532-054 | IND | 6 Hole fixing. Side Mounted.90 degree swing. 10-180 Ohms | 704/50036 | |
| TB5532-055 | IND | 6 hole fixing. Top mounted. Float arm radius 432.Reinshagen Connector .Resistance 16 OHMS ful,310 OHMS empty. | 704/50038 | |
| TB5532-057 | IND | 6 Hole fixing. Top Mounted. Insulated Return. 66 degree swing. 158 resistance. Complete with harness | ||
| TB5532-058 | IND | 6 hole fixing. Top mounted.8mm feedpipe 90 degree swing. Reinshagen Connector . Radius 221 mm | 704/50023-1 | |
| TB5532-059 | IND | 6 Hole fixing. Top Mounted.70 degree swing. Complete with adaptor harness | 614695 | |
| TB5532-060 | IND | 6 Hole fixing. Top Mounted.70 degree swing. Complete with adaptor harness | 615354 | |
| TB5532-061 | IND | 6 Hole fixing. Top Mounted. Insulated Return. 90 degree swing. | 615354 | |
| TB5532-062 | IND | 6 hole fixing. Top mounted. Float arm radius 385mm.Insulated return. Reinshagen Connector. | 111-T60001 | |
| TB5532-063 | IND | Earth return.80 degree swing.0-180 Ohms 560mm radius arm. | 15308199/00160 | |
| TB5532-064 | IND | 6 hole fixing. Top mounted. Float arm radius 385mm.Insulated return. Reinshagen Connector. | ||
| TB5532-065 | OTHER | 6 hole fixing. Top mounted. 90 degree swing.Reinshagen Connector . Reverse Characteristics.Earth Return.12/24 volt | ||
| TB5532-066 | IND | Close pivot. Insulated Return. Reinshagen Connector. Float arm radius 155. Resistance 180R-5R | 331/25504 5500079944 | |
| TB5532-067 | IND | 6 hole fixing with 8mm bend feed pipe.80 degree swing.VDO Charc (10-180).Reinshagen Connector .Earth return | 704/50093 | |
| TB5532-068 | IND | 6 hole fixing with 8mm bend feed pipe.90 degree swing.VDO Charc (10-180).Reinshagen Connector .Earth return. With warning light operating at approx 20 deg | ||
| TB5532-069 | WESTFIELD | 5-HOLE FIXING TANK UNIT,TOP MOUNTED,3-180 OHM RESISTANCE,INSULATED RETURN,141.5mm FLOAT ARM | ||
| TB5532-070 | WESTFIELD | 5-HOLE FIXING TANK UNIT,TOP MOUNTED,3-180 OHM RESISTANCE,INSULATED RETURN,161.0mm FLOAT ARM RADIUS. | ||
| TB5532-071 | WESTFIELD | 5-HOLE FIXING TANK UNIT,TOP MOUNTED,3-180 OHM RESISTANCE,INSULATED RETURN,77.0mm FLOAT ARM RADIUS. | ||
| TB5532-072 | JAGUAR | EARTH RETURN. FLOAT ARM RADIUS 255mm. 70 DEGREE SWING. 0-83 OHM RESISTANCE. | ||
| TB5532-074 | IND | EARTH RETURN. FLOAT ARM RADIUS 567mm.80 DEGREE SWING .0-180 OHM RESISTANCE. | 15319447 | |
| TB5532-075 | CLASSIC | EARTH RETURN. FLOAT ARM RADIUS 86mm.70 DEGREE SWING. 0-83 OHM RESISTANCE. | ||
| TB5532-076 | CLASSIC | REVERSE CHARACTERISTIC. 80 DEG SWING WARNING LIGHT. 6-HOLE FIXING. SIDE MOUNTED. 12 VOLT.8/32" STUD CONNECTION. | REPLACEMENT FOR FT2230-55 | |
| TB5532-077 | CLASSIC | TOP MOUNTED EARTH RETURN.6 HOLE FIXING. CLOSE PIVOT 80 DEGREE SWING | 673496 (FT5301-12 EQUIVALENT) | |
| TB5532-078 | IND | 6 HOLE WITH 8mm BENT FEED PIPE. EARTH RETURN REINSHAGEN CONNECTOR: 90 deg SWING | 704/50242 | |
| TB5532-079 | CLASSIC | 55 DEG SWING. INS RETURN 6-HOLE FIXING. SIDE MOUNTED. 12 VOLT. 8/32" STUD CONNECTION | ||
| TB5532-080 | IND | 5 HOLE WITH 8mm BENT FEED PIPE. EARTH RETURN 8/32 STUD CONNECTOR: 80 deg SWING | 89246 | |
| TB5532-081 | IND | 6 HOLE WITH 9.5mm BENT FEED PIPE. EARTH RETURN.REINSHAGEN CONNECTOR: 80 deg SWING: 10-180 | 332/D4140 | |
| TB5532-083 | IND | FUEL LEVEL TANK UNIT - 0-180 OHM RESISTANCE,INSULATED RETURNSIDE MOUNTING,SHROUDED TERMINALS.380mm RADIUS ARM. | 21466022 | |
| TB5532-084 | OTHER | EARTH RETURN. FLOAT ARM RADIUS 97mm. 80 DEGREE SWING. 0-180 OHM RESISTANCE. | ||
| TB5532-085 | OTHER | EARTH RETURN. FLOAT ARM RADIUS 105mm. 70 DEGREE SWING.240-20 OHM RESISTANCE. | ||
| TB5532-086 | OTHER | 6 HOLE TOP MOUNTED . 6 DEG ARM SWING.240-33 RESISTOR.SHROUDED TERMINAL.EARTH RETURN.DUAL FEED PIPES. | ||
| TB5532-088 | OTHER | 5 - EQUISPACED HOLES.SIDE MOUNTED.80 DEG. SWING.10-180 OHM RESISTANCE. HAND BUILT. NO TOOLING. | ||
| TB5532-090 | VWCLA | 5 HOLE FIXING. EARTH RETURN. 168mm RADIUS ARM. | ||
| TB5532-091 | OTHER | 6 HOLE .TOP MOUNTED . 80 DEG ARM SWING.10-180 RESISTOR. SHROUDED TERMINAL. EARTH RETURN.DUAL FEED PIPES. 249mm RADIUS ARM. | ||
| TB5532-093 | IND | 0-180 OHM RESISTANCE,INSULATED RETURNSIDE MOUNTING,SHROUDED TERMINALS. 380mm RADIUS ARM.WITH WIRE AND TERMINAL ASSEMBLY. | 22563373 | |
| TB5532-094 | IND | 0-180 OHM RESISTANCE,INSULATED RETURNSIDE MOUNTING,SHROUDED TERMINALS. 318mm RADIUS ARM.WITH WIRE AND TERMINAL ASSEMBLY. | 22563375 | |
| TB5532-095 | IND | 6 HOLE WITH 8mm BENT FEED PIPE. EARTH RETURN REINSHAGEN CONNECTOR: 90 deg SWING: VDO CHARACTERISTIC (10-180) | ||
| TB5532-096 | IND | 6 HOLE WITH 9.5mm BENT FEED PIPE. EARTH RETURN.REINSHAGEN CONNECTOR: 80 deg SWING: VDO CHARACTERISTIC(10-180) | ||
| TB5532-097 | COBRA | TOP MOUNTED. 70 DEGREE SWING. EARTH RETURN.BLADE CONNECTION.PLASTIC FLOAT. 6 HOLE FIXING. | ||
| TB5532-098 | OTHER | TOP MOUNTED. 80 DEGREE SWING. EARTH RETURN.BLADE CONNECTION.PLASTIC FLOAT. 6 HOLE FIXING. | ||
| TB5532-099 | LOTUS | EARTH RETURN. FLOAT ARM RADIUS163 mm.70 DEGREE SWING.0-80 OHM RESISTANCE. | ||
| TB5532-100 | OTHER | SIDE MOUNTED. 6 HOLE. 80 DEG. SWING WITH WARNING LIGHT. 134mm ARM RADIUS. | ||
| TB5532-101 | OTHER | 5 HOLE FIXING TOP MOUNTED, BI-METAL RESISTANCE, 145mm ARM RADIUS. | ||
| TB5532-102 | OTHER | 5 HOLE FIXING TOP MOUNTED, BI-METAL RESISTANCE, 139mm ARM RADIUS. | ||
| TB5532-104 | LOTUS | 6 HOLE SIDE MOUNTED BI-METAL RESISTANCE, MATCHES FG2530-71 LOTUS ELAN MK1 FUEL GAUGE | ||
| TB5533-001 | OTHER | TOP MOUNTED 6 HOLE PLATE. INSULATED RETURN REVERSE CHARACTERISTIC PIVOT DEPTH 315 RADIUS 317. | 32698500 | |
| TB5632-003 | LANDROVER | G78/0 BIMETAL RESISTANCE TYPE. BLADE CONNECTION. 90 DEGREE SWING.6.35 EXTENSION ROD WITH COLLAR. EARTH RETURN. TOP MOUNTED.6 HOLE FIXING. WARNING LIGHT CONTRACTS. 12/24 VOLT | PRC3098 | |
| TB8832-000 | IND | SPECIAL FIVE HOLE FIXING TANK UNIT. TOP MOUNTED. EURO C CHARACTERISTICS. 90 DEGREE SWING. | ||
| TB9006-000 | LANDROVER | G63/8 BI-METAL RESISTANCE. RATIONALISED (INTERIM). TOP MOUNTED.6 HOLE FIXING. EARTH RETURN. 10 VOLT REG. W/L CONTACT.NORMAL PIVOT. 70 DEGREE SWING. BLADE CONNECTION. | 90560612 | |
| TB9006KIT | INTL | BIMETAL RESISTANCE. 6 HOLE TOP MOUNTED.EARTH RETURN. 10 VOLT W/L CONTACT. NORMAL PIVOT .70 DEG SWING.WIRE CONTACTS. SHROUDED TERMINALS | ||
| TB9010-000W | OTHER | G78/8.TYPE . EUROPEAN RESISTANCE. TOP MOUNTED. 6 HOLE FIXING.EARTH RETURN. WARNING LIGHT CONTACT. NORMAL PIVOT. 70 SWING.BLADE CONNECTION. | ||
| TB9010-110 | CLASSIC | EUROPEAN RESISTANCE. TOP MOUNTED 6 HOLE FIX. EARTH RETURN.WARNING LIGHT CONTACT. NORMAL PIVOT 70 deg SWING.NON SHROUDED TERMINALS (110mm ARM RADIUS) | ||
| TB9010-140 | IND | TANK UNIT | ||
| TB9010-165 | IND | EUROPEAN RESISTANCE. TOP MOUNTED. 6 HOLE FIXING. EARTH RETURN. WARNING LIGHT CONTACT NORMAL PIVOT 70DEG SWING NON SHROUDED TERMINALS(165mm ARM RADIUS) | ||
| TB9010-170 | IND | EUROPEAN RESITANACE.TOP MOUNTED. 6 HOLE FIXING. EARTH RETURN. W/LIGHT CONTACT.NORMAL PIVOT. 70 DEG SWING. NON SHROUDED TERMINALS(R170mm ARM) | 7346990 | |
| TB9010-200 | OTHER | FUEL LEVEL TANK UNIT. EURO RESISTANCE. EARTH RETURN. TOP MOUNTED, 6 HOLE.SHROUDED MALE TERMINALS.200mm ARM RADIUS. | 7353568 | |
| TB9010-210 | OTHER | TANK UNIT | ||
| TB9010-240 | IND | EUROPEAN RESISTANCE. TOP MOUNTED. 6 HOLE FIXING. EARTH RETURN. WARNING LIGHT CONTACT. NORMAL PIVOT. 70ø SWING NON SHRODED TERMINALS(240mm ARM RADIUS). | 0019731203 | |
| TB9010-280 | IND | TOP MOUNTED. 6 HOLE FIXING. EARTH RETURN WITH WARNING CONTACT. NORMAL PIVOT. 70 DEGREE SWING BLADE CONECTION F.LOAT ARM RADIUS SOLDERED AT 280 | 7353541/003 | |
| TB9010-310 | INTL | EURO RESISTANCE. EARTH RETURN. TOP, 6 HOLE, MOUNTING.WARNING LIGHT CONTACT. 1O VOLT REG. NON SHROUDED TERMINALS. | ||
| TB9010-330 | IND | EUROPEAN RESISTANCE TOP MOUNTED 6 HOLE FIXING. EARTH RETURN. WARNING LIGHT CONTACT NORMAL PIVOT. 70ø SWING. NON SHROUDED TERMINALS(330mm ARM RADIUS) | ||
| TB9010-370 | IND | TANK UNIT ASSY COMPL | ||
| TB9010-410 | IND | EUROPEAN CHARACTERISTIC TOP MOUNTED. 6 HOLE FIXING. EARTH RETURN.W/LCONTACTS. NORMAL PIVOT 70 DEG. SWING NON SHRODED TERMINALS(410mm RADIUS ARM) | ||
| TB9010-460 | IND | EUROPEAN RESISTANCE TOP MOUNTED. 6 HOLE FIXING. EARTH RETURN. WARNING LIGHT CONTACTS NORMAL PIVOT 70ø SWING NON SHRODED TERMINALS(460mm RADIUS ARM) | J780-005-438 7353533/003 | |
| TB9010KIT | INTL | EURO RESISTANCE. EARTH RETURN. TOP, 6 HOLE, MOUNTING. WARNING LIGHT CONTACT. 10 VOLT REG.NON-SHROUDED MALE TERMINALS. | ||
| TB9011-000 | CLASSIC | G78/8B.BI-METAL RESISTANCE. TOP MOUNTED. 6 HOLE FIXING. 70 SWING.INSULATED RETURN. NORMAL PIVOT. SHROUDED TERMINALS. | ||
| TB9011KIT | IND | BIMETAL RESISTANCE. INSULATED RETURN.TOP, 6 HOLE, MOUNTING. SHROUDED TERMINALS. | 90299090 | |
| TB9012-000 | IND | G78.EURO RESISTANCE. TOP MOUNTED. 6 HOLE FIXING.INSULATED RETURNNORMAL PIVOT. 70 Deg SWING. SHROUDED TERMINALS. | ||
| TB9012-460 | INTL | TANK UNIT | ||
| TB9012KIT | OTHER | EURO RESISTANCE. INSULATED RETURN. TOP, 6 HOLE, MOUNTING. SHROUDED TERMINALS. | ||
| TB9013-000 | IND | G78/8B. BI-METALRESISTANCE. SIDE MOUNTED. 6 HOLE FIXING. INSULATED RETURN.NORMAL PIVOT.90 DEGREE SWING. SHROUDED TERMINALS. | ||
| TB9013-130 | CLASSIC | BIMETAL RESISTANCE .INSULATED RETURN . SIDE MOUNTED.6 HOLE.SHROUDED TERMINALS. 130mm RADIUS ARM | ||
| TB9013-290 | CLASSIC | BIMETAL RESISTANCE .INSULATED RETURN . SIDE MOUNTED, 6 HOLE, SHROUDED TERMINALS. 290mm RADIUS ARM | BCU2282 | |
| TB9013-300 | CLASSIC | TANK UNIT | ACU6446 | |
| TB9013-380 | CLASSIC | EUROPEAN RESISTANCE. EARTH RETURN. TOP. SHROUDED MALE BLADE TERMINALS. | ||
| TB9013KIT | IND | BIMETAL RESISTANCE. INSULATED RETURN.SIDE, 6 HOLE, MOUNTING. SHROUDED TERMINALS. | CB-FS-SIDE 070012 | |
| TB9014-000 | INTL | G78/8B.EURO RESISTANCE. SIDE MOUNTED. 6 HOLE FIXING. 90 SWING.INSULATED RETURN. NORMAL PIVOT. SHROUDED TERMINALS. | ||
| TB9014KIT | IND | EURO RESISTANCE. INSULATED RETURN,SIDE MOUNTED 6 HOLE SHROUDED TERMINAL | ||
| TB9014-S-320-1 | IND | SIDE MOUNTING. 6 HOLE FIXING.SHROUDED TERMINALS INS. RETURN 90 DEGREE SWING. | 0620053400 | |
| TB9014-S-360-1 | IND | G78/8B.EURO RESISTANCE. SIDE MOUNTED. 6 HOLE FIXING.INSULATED RETURN. NORMAL PIVOT. 90DEG SWING.SHROUDED TERMINALS. | ACU7428 | |
| TB9014-S-390-1 | IND | SPLIT ARM FUEL LEVEL TANK UNIT. SIDE MOUNTING, 6 HOLE FIXING.SHROUDED TERMINALS. INSULATED RETURN. 90øSWING. 36 START ANGLE | NDK9280 | |
| TB9018-000 | OTHER | SIDE MOUNTED.6 HOLE FIXING. EURO RESISTANCE. EARTH RETURN. NORMAL PIVOT. 90 SWING .WARNING LIGHT CONTACT | 6680-99-2552678 | |
| TB9018-240 | IND | SIDE MOUNTED 6 HOLE FIXING.EURO RESISTANCE. EARTH RETURN. NORMAL PIVOT, 90 deg SWING.WARNING LIGHT CONTACT. 240mm ARM RADIUS | 15226389 | |
| TB9018-280 | IND | SIDE MOUNTED. EARTH RETURN WITH LOW LEVEL SWITCH. 135 RESISTANCE. 90 DEGREE SWING WITH 280 PIVOT. 6 HOLE TOP PLATE | ||
| TB9018-350 | IND | SIDE MOUNTED 6 HOLE FIXING.EURO RESISTANCE. EARTH RETURN. NORMAL PIVOT, 90 deg SWING.WARNING LIGHT CONTACT. 350mm ARM RADIUS | ||
| TB9018-560 | IND | SIDE MOUNTED EARTH RETURN WITH LOWLEVEL SWITCH. 135 RESISTANCE 90 DEGREE SWING WITH 560 PIVOT 6 HOLE TOP PLATE. | ||
| TB9018KIT | CLASSIC | EURO RESISTANCE. EARTH RETURN, 6 HOLE,SIDE MOUNTING,WARNING LIGHT CONTACTS,NON SHROUDED TERMINAL. | ||
| TB9021-000 | IND | G78 TYPEEURO RESISTANCE. TOP MOUNTED. 6 HOLE FIXING. EARTH RETURN.WARNING LIGHT CONTACT. NORMAL PIVOT. 70 DEGREE SWING.BLADE CONNECTION. | ||
| TB9022-000 | LOTUS | 5 HOLE FIXING (UNEQUAL).TOP MOUNTED. 90 DEGREE SWING. EURO C CHARACTERISTIC.EARTH RETURN. REINSHAGEN CONNECTOR. LOW WARNING SWITCH. | ||
| TB9022-001 | TVR | 5 HOLE FIXING -UNEQUAL SPACING.TOP MOUNTED .90 DEGREE SWING. EURO C CHARACTERISTIC. RIENSHAGEN CONNECTOR | ||
| TB9022-003 | ASTONM | TOP MOUNTED. 5 HOLE (UNEQUAL)FIXING PLATE. EARTH RETURN. 70 DEGREE ROTATION. PIVOT 100 -RADIUS 120. | ||
| TB9022-005 | LOTUS | METAL TANK UNIT | ||
| TB9022-100 | IND | SIDE MOUNTED. 5 HOLE (UNEQUAL)SPACING. PIVOT 80mm. RADIUS 270. | AELB484 | |
| TB9022-101 | IND | SIDE MOUNTED. 5 HOLE UNEQUAL SPACING.PIVOT 80mm RADIUS 355 | AELB483 | |
| TB9022-102 | IND | SIDE MOUNTED. 5 HOLE UNEQUAL SPACING.PIVOT 80mm. RADIUS 190. | AELB542 | |
| TB9022-103 | IND | 5 HOLE UNEQUAL SPACING. SIDE MOUNTED. PIVOT 80mm RADIUS 375 | AELA250 | |
| TB9022-104 | IND | 5-HOLE: SIDE MOUNTED.70deg ARM SWING: 310-12ohms:REINSHAGEN CONNECTOR. | ||
| TB9022-105 | IND | 5-HOLE .SIDE MOUNTED . 66 DEG ARM SWING:240-33 RESISTOR .REINSHAGEN CONNECTOR. INSULATED RETURN 66.DEG.ARM SWING. | AELD202 | |
| TB9022-106 | IND | 5-HOLE: SIDE MOUNT TANK UNIT: 66 DEG ARM SWING:240-33 RESISTOR REINSHAGEN CONNECTOR INSULATED RETURN | 1403468 | |
| TB9022-107 | IND | 5-HOLE.SIDE MOUNTED. 66 DEG ARM SWING.240-33 RESREINSHAGEN CONNECTOR. INSULATED RETURN 66 DEG ARM SWING | AELD204 | |
| TB9022-108 | IND | 5-HOLE.SIDE MOUNTED. 66 DEG ARM SWING. 240-33 RESIST.REINSHAGEN CONNECTOR. INSULATED RETURN.66 DEG ARM SWING | AELD205 | |
| TB9023-000 | IND | EARTH RETURN WITH WARNING LIGHT AT 6deg. CLOSE PIVOT WITH FLOAT ARM RADIUS 392. 70deg SWING .SIDE MOUNTED. | 15259304 | |
| TB9023-001 | IND | EARTH RETURN.FLOAT ARM RADIUS 560 90 DEGREE SWING. VDO CHARACTERISTIC. | 15300412/00150 | |
| TB9023-004 | OTHER | TOP MOUNTED. 6 HOLE FIX. INSULATED RETURN. 0-90 OHM RESISTANCE | ||
| TB9023-005 | IND | EARTH RETURN. FLOAT ARM RADIUS 215. 70 DEGREE SWING. VDO CHARACTERISTIC. | ||
| TB9023-006 | IND | EARTH RETURN. FLOAT ARM RADIUS 401. 70 DEGREE SWING. VDO CHARACTERISTIC | ||
| TB9023-008 | IND | EARTH RETURN. FLOAT ARM RADIUS 240. 70 DEGREE SWING. VDO CHARACTERISTIC. | ||
| TB9023-009 | IND | EARTH RETURN. FLOAT ARM RADIUS 363. 70 DEGREE SWING. VDO CHARACTERISTIC. | ||
| TB9023-010 | IND | 5 HOLE, 90deg SWING, 0-90 ohm CHARACTERISTIC | ||
| TB9023-011 | IND | EARTH RETURN.FLOAT ARM RADIUS 560mm.90 DEGREE SWING. VDO CHARACTERISTIC. | 15319403 | |
| TB9025KIT | CLASSIC | BIMETAL RESISTANCE. WITH WARNING LIGHT.SIDE MOUNTING. 6 HOLE., SHROUDED TERMINALS. | ||
| TB9030-000 | IND | TOP MOUNTED. 5 HOLE UNEQUAL SPACING. 8mm FEED PIPE (FORMED AND FLUTED) 6mm RETURN PIPE (FORMED & FLUTED) PIPE DEPTH 184mm - PIVOT 70mm - FLOAT ARM RADIUS 118mm | ||
| TB9032-000 | IND | TOP MOUNTED. 6 HOLE. 8mm FEED PIPE.6.35 RETURN PIPE (DEPTH 396). PIVOT 206. FLOAT ARM RADIUS 240 | 716/20800 | |
| TB9032-001 | IND | TOP MOUNTED. 6 HOLE. 8mm FEED PIPE. 6.35 RETURN PIPE (DEPTH 3) PIVOT 206. FLOAT ARM RADIUS 240.WITHOUT FILTER. | 704/50024 | |
| TB9032-002 | IND | TOP MOUNTED 6 HOLE. 8mm FEED PIPE. 8mm RETURN PIPE.FLOAT ARM RADIUS 240.WITHOUT FILTER. | ||
| TB9032-103 | IND | 6-HOLE INSULATED RETURN, 6.35dia RETURN PIPE &8.0 dia FUEL PIPE | 704/50022 | |
| TB9036-000 | IND | TOP MOUNTED 6 HOLE FIXING PLATE.CLOSE PIVOT - FLOAT ARM RADIUS 360 | ||
| TB9036-001 | OTHER | TOP MOUNTED 6 HOLE FIXING PLATE.CLOSE PIVOT - FLOAT ARM RADIUS 248. | E18415 | |
| TB9051-000 | INTL | REVERSE CHARACTERISTIC 10-180. TOP MOUNTED. 6 HOLE FIXING.INSULATED RETURN. NORMAL PIVOT. 80 DEG SWING. SHROUDED TERMINALS | ||
| TB9051KIT | INTL | REVERSE CHARACTERISTIC 10-180. TOP MOUNTED. 6 HOLE FIXING.INSULATED RETURN. NORMAL PIVOT. 80 DEG SWING. SHROUDED TERMINALS | ||
| TB9052-000 | IND | REVERSE CHARACTERISTIC 10-180. TOP MOUNTED. 6 HOLE FIXING.INSULATED RETURN. NORMAL PIVOT. 80 DEG SWING. SHROUDED TERMINALS | ||
| TB9055-005 | LOTUS | METAL TANK UNIT | ||
| TBA9010-000 | SPARES | 6 HOLE. ADJUSTABLE 6"-24".EARTH RETURN 10R-180R CHARACTERISTIC.BLADE TERMINAL. | ||
| TBA9050-000 | IND | 6 HOLE. ADJUSTABLE 6"-24".EARTH RETURN 3R-80R CHARACTERISTIC.BLADE TERMINAL. | ||
| TBA9110-000 | IND | 6 HOLE ADJ 6" - 24".INSULATED RETURN 10 - 180CHAR BLADE TERMINALS. | ||
| TBA9110-000R | OTHER | 6 HOLE ADJ 6" - 24".INSULATED RETURN 10 - 180 CHAR BLADE TERMINALS. | RTECF6H | |
| TBA9150-000 | IND | 6 HOLE ADJ 6" - 24".INSULATED RETURN 3-80 CHAR BLADE TERMINALS. | ||
| TBC9000-000 | IND | DIP PIPE REPLACEMENT TANK UNIT. | ||
| TBS1114-000R | CLASSIC | G78/8B.BI-METAL RESISTANCE TYPE. SIDE MOUNTED. EARTH RETURN.BLADE CONNECTION. 70 DEGREE SWING. SMITH FIX. 10 VOLT (REG) CLIP ON PLASTIC FLOAT. | AHU1027 | |
| TBS1114-010 | LOTUS | SMITHFIX.BI-METAL RESISTANCE TYPE. NORMAL PIVOT. SIDE MOUNTED | ||
| TBS1114-014R | MG | BIMETAL RESISTANCE TYPE.TOP MOUNTED. EARTH RETURN. BLADE CONNECTION. 70 SWING. SMITHFIX. 10 VOLT REG. CLIP ON PLASTIC FLOAT. | SMB116 | |
| TBS1114-016 | TVR | B78/8B.BIMETAL RESISTANCE TYPE. RATIONALISED. NORMAL PIVOT.TOP MOUNTED | ||
| TBS1114-020 | SPARES | TOP MOUNTED 70 DEGREE SWING TANK UNIT SMITHFIX | DAR4393 | |
| TBS1114-021 | CLASSIC | TOP MOUNTED 70 DEGREE SWING TANK UNIT SMITHFIX | CER1891 | |
| TBS1114-022 | IND | TOP MOUNTED 70ø SWING TANK UNIT SMITHFIX | ||
| TBS1114-023 | IND | TOP MOUNTED 70ø SWING TANK UNIT SMITHFIX | ||
| TBS1114-024 | SPARES | TOP MOUNTED 70 SWING TANK UNIT SMITHFIX | ||
| TBS1114-025 | SPARES | TOP MOUNTED 70 SWING TANK UNIT SMITHFIX | ||
| TBS1114-026 | SPARES | TOP MOUNTED 70 DEGREE SWING TANK UNIT WITH HEATER PIPE AND NYLON TUBE SMITHFIX | ||
| TBS1114-027 | OTHER | BI-METAL RESISTANCE TYPE. SIDE MOUNTED. EARTH RETURN.BLADE CONNECTION. 70 DEGREE SWING. SMITH FIX. 10 VOLT (REG) CLIP ON PLASTIC FLOAT. | ||
| TBS1114-028 | LOTUS | BIMETAL RESISTANCE TYPE WITH WARNING LIGHT. NORMAL PIVOT.TOP MOUNTED. | ||
| TBS1214-004 | LOTUS | METAL TANK UNIT | ||
| TBS1214-008 | ASTONM | BIMETAL RESISTANCE.RATIONALISED. BLADE CONNECTOR. NORMAL PIVOT. SIDE MOUNTED.EARTH BLADE WITH WARNING LIGHT. | 080-034-0115 | |
| TBS1214-009 | CLASSIC | BI-METAL. RESISTANCE TYPE. RATIONALISED WITH WARNING LIGHT CONTACTS. NORMAL PIVOT. SMITHFIX FIXING. | ||
| TBS1214-012 | OTHER | BI-METAL RESISTANCE. WARNING LIGHT.3/16" WIDE EARTH BLADE. NORMAL PIVOT. SMITHFIX FIXING.SIDE MOUNTED. | ||
| TBS1214-012 | LOTUS | BI-METAL RESISTANCE. WARNING LIGHT.3/16" WIDE EARTH BLADE. NORMAL PIVOT. SMITHFIX FIXING.SIDE MOUNTED. | ||
| TBS1214-018 | IND | G78/8B TYPE. BI-METAL RESISTANCE. RATIONALISED WITH W/L CONTACT & 4.76mm WIDE .EARTH BLADE. NORMAL PIVOT. SMITHS T.U. SIDE MOUNTED. 12 VOLT70 DEGREE SWING. FLAT FLOAT. | DAC5500 | |
| TBS1214-019 | JAGUAR | BI-METAL RESISTANCE WITH WARNING LIGHT CONTACTS & 4.76mm WIDE EARTH BLADE.NORMAL PIVOT.SMITHFIX FIXING.SIDE MOUNTED.12 VOLT.FLAT FLOAT. | 02DAC5525 | |
| TBS1232-000 | MCYCLE | BI-METAL RESISTANCE. 70 DEGREE SWING.WARNING LIGHT CONTACTS. EARTH RETURN. BLADE CONNECTION.SMITHFIX. 12 VOLT. SIDE MOUNTED. | ||
| TBS1232-000R | CLASSIC | BI-METAL RESISTANCE. 70 DEGREE SWING.WARNING LIGHT CONTACTS. EARTH RETURN. BLADE CONNECTION.SMITHFIX. 12 VOLT. SIDE MOUNTED.PACK WITH LOCKING RING AND SEAL | ||
| TBS1514-003 | TRIUMPH | BI-METAL RESISTANCE. NORMAL PIVOT.SIDE MOUNTED. 90 DEG. SWING. | ||
| TBS1514-007 | OTHER | NO DESC | ||
| TBS1514-008 | COBRA | BI-METAL RESISTANCE TYPE. SIDE MOUNTED. EARTH RETURN.BLADE CONNECTION. 90 DEGREE SWING. SMITH FIX. 10 VOLT (REG)CLIP ON PLASTIC FLOAT. | ||
| TBS1514-009 | COBRA | WITH RETURN PIPE. BI-METAL RESISTANCE TYPE. SIDE MOUNTEDEARTH RETURN. BLADE CONNECTION. 90 DEGREE SWING. SMITH FIX 10 VOLT (REG). CLIP ON PLASTIC FLOAT. | ||
| TBS1614-000W | ASTONM | G78/8B.TYPE: BI-METAL RESISTANCE. RATIONALISED. NORMAL PIVOT. SIDEMOUNTED. ANTI-RATTLE RING. WARNING LIGHT CONTACTS. 90 SWING,SHROUDED TERMINALS | 34-12803 | |
| TBS1814-000W | IND | 84132 11/02/98 86848 12/02/08 | CAL0968 | |
| TBS1814-002 | IND | G78/8B.BI-METAL RESISTANCE TYPE. SMITHFIX. NORMAL PIVOT. 90 DEGREE SWING. INSULATED RETURN. BLADE CONNECTION. SIDE MOUNTED.STIFFENED FLOAT ARM. 12 & 24 VOLTS. | 56942S1 | |
| TBS1814-006 | IND | G78/8B.BI-METAL RESISTANCE TYPE. SMITHS T.U. FIXING. NORMAL PIVOT.90 SWING. 12 & 24 VOLT. INSULATED RETURN. SHROUDED TERMINALS | TC4410254 | |
| TBS1814-007 | IND | 84132 11/02/98 86848 12/02/08 | ACU9387 | |
| TBS1832-000 | IND | G7B/8B BIMETAL RESISTANCE TYPE. NORMAL PIVOT. 90 SWING. 10 VOLT REG INSULATED RETURN. SIDE MOUNTED. SHROUDED TERMINALS. SMITHFIX STIFFENED FLOAT ARM. | ACU1937 | |
| TBS1832-001 | CLASSIC | G78/8B.BIMETAL RESISTANCE TYPE. NORMAL PIVOT. 90deg SWING. 10 VOLTREG. INSULATED RETURN. SIDE MOUNTED. SHROUDED TERMINALS.SMITHFIX | ACU1936 | |
| TBS1832-002W | IND | G78 EURO RESISTENCE TYPE "SMITH FIX" NORMAL PIVOT INSULATED RETURN | RDK8833 | |
| TBS1832-003 | SPARES | G.78 18B EUROFUEL RESISTANCE (SMITHFIX) TANK UNIT. FIXING 90 deg SWING INSULATED RETURN. | ACU9133 | |
| TBS2114-000 | TRIUMPH | G78/8B.BI-METAL RESISTANCE TYPE. SIDE MOUNTED. EARTH RETURN. BLADE CONNECTION. 70 DEGREE SWING. SMITH FIX. 10 VOLT (REG) CLIP ON PLASTIC FLOAT. | 215468 | |
| TBS2114-002 | IND | G78/6B BI METAL RESISTANCE TYPE. EARTH RETURN.70SWING. SIDE MOUNTED.SMITHFIX. 10 VOLT REGULATED. CLIP ON PLASTIC FLOAT.CLOSE PIVOT | ||
| TBS3114-001 | JAGUAR | JAGUAR XDM LIMOUSINE (LH TANK) | 27DAC1893 | |
| TBS3414-000 | TRIUMPH | TRIUMPH SPITFIRE TANK UNIT - EARTH RETURN FLOAT ARM RADIUS 70 DEG SWING | TKC2053 | |
| TBS4114-000 | JAGUAR | JAGUAR XDM LIMOUSINE (RH TANK) | 27DAC1894 | |
| TBS5114-000 | JAGUAR | Tank unit XJ3 L/H Smithfix Tank unit G63 | C262212 | |
| TBS5114-001 | JAGUAR | Tank unit XJ3 L/H Smithfix Tank unit G63 | C262212 | |
| TBS5114-018 | IND | BI-METAL RESISTANCE. 8.0mm O.D. FEED PIPE.TOP MOUNTED. SMITHFIX FIXING. EARTH BLADE. ANTI-RATTLE RING. | ||
| TBS5114-021W | MG | BI-METAL RESISTANCE TYPE. 7.94 DIA. FEED PIPE WITH FILTER .SIDE MOUNTED. SMITHFIX. EARTH RETURN. 70 DEGREE SWING.10 VOLT REG. CLIP ON PLASTIC FLOAT. SHROUDED TERMINAL. | ADU3218 | |
| TBS5114-023W | IND | G78/OB BI-METAL RESISTANCE. 70 SWING. 1/4" DIAMETER FEED PIPE.EARTH RETURN. BLADE CONNECTION. TOP MOUNTING. | 22204 | |
| TBS5114-025W | LANDROVER | G78/0B.BI-METAL RESISTANCE TYPE. TOP MOUNTED. EARTH RETURN.BLADE CONNECTION. 70 DEGREE SWING. SMITH FIX 5/16"FEED PIPEWITH FILTER (PETROL) | 18623097 | |
| TBS5114-031W | IND | TANK UNIT | ||
| TBS5114-032 | IND | G.78/0B BIMETAL RESISTANCE TYPE. SIDE MOUNTED. 6.35 FEED PIPE WITH FILTER.EARTH RETURN. BLADE CONNECTION. 70 DEGREE SWING. SMITHFIX.10 VOLT REGULATED. CLIP ON PLASTIC FLOAT. | ||
| TBS5114-034 | CLASSIC | 678/0B.BIMETAL RESISTANCE TYPE. TOP MOUNTED. 7.94 FEED PIPE.EARTH RETURN. BLADE CONNECTION. 70 DEGREE SWING. SMITHFIX10 VOLT REGULATED. CLIP ON PLASTIC FLOAT. | 6680-99-7550716 | |
| TBS5114-038 | IND | BI-METAL RESISTANCE TYPE.TOP MOUNTED. EARTH RETURN. BLADE CONNECTION. 70 DEG. SWING.SMITHFIX.5/16" FEED PIPE & 1/4" RETURN PIPE. 12 VOLT.SHROUDED TERMINAL. | ||
| TBS5114-048 | SPARES | SMITHFIX 8mm FEEDPIPE AND 6.35mm RETURN PIPE STANDARD WINDING. PIPE DEPTH 180mm FLOAT ARM RADIUS 119mm. RIENSHAGEN CONNECTOR. | DAR4392 | |
| TBS5114-050 | SPARES | SMITHFIX 8mm FEED PIPE 6.35mm RETURN PIPE WITH NYLON EXTENSION STANDARD WINDING PIPE DEPTH 288mm. FLOAT ARM RADIUS 210mm.RIENSHAGEN CONNECTOR. | CER1260 | |
| TBS5114-051 | SPARES | SMITHFIX 8mm FEEDPIPE 6.35mm RETURN STANDARD WINDING PIPE DEPTH 250mm FLOAT ARM RADIUS168mm. RIENSHAGEN CONNECTOR. | ||
| TBS5114-052 | SPARES | SMITHFIX 8mm FEEDPIPE 6.35mm RETURN STANDARD WINDING PIPE DEPTH 190mm FLOAT ARM RADIUS 98mm RIENSHAGEN CONNECTOR | DAR4391 | |
| TBS5114-056 | SPARES | TOP MOUNTED SMITHFIX 8mm FEED PIPE PIPE DEPTH 250mm PIVOT 126mm RADIUS 169mm | LBU6442 | |
| TBS5114-057 | IND | SMITHFIX 8mm FEED PIPE.STANDARD WINDING. PIPE DEPTH 184mm. FLOAT ARM RADIUS 119RIENSHAGEN CONNECTOR & FILTER. | LBU6443 | |
| TBS5114-059 | SPARES | TOP MOUNTED SMITHFIX 8mm FEED PIPE DEPTH 190 - PIVOT 105 - FLOAT ARM RADIUS 98 | LBU6443 | |
| TBS5114-060 | IND | TOP MOUNTED SMITHFIX | LBU6446 | |
| TBS5114-061 | SPARES | TOP MOUNTED SMITHFIX 8mm FEED PIPE - 6mm FEED PIPE (FORMED) - 6mm RETURN WITH NYLON EXTENSION | CER1261 | |
| TBS5114-062 | SPARES | SMITHFIX 8mm FEEDPIPE 6.35mmRETURN PIPE WITH NYLON FUEL PIPE EXTENSION. STANDARD WINDING.RIENSHAGEN CONNECTOR. PIPE DEPTH 245mm. PIVOT POINT 126mm.FLOAT ARM RADIUS 168mm. | CER1259 | |
| TBS5114-063 | IND | TOP MOUNTED SMITHFIX 8mm FEED PIPE 6mm FEED PIPE(FORMED) - 6mm RETURN WITH NYLON EXTENSION | CER2808 | |
| TBS5114-064 | IND | SMITHFIX 8mm FEEDPIPE AND 6.35mm RETURN PIPE STANDARD WINDING. PIPE DEPTH 176mm (180mm WITHFILTER). FLOAT ARM RADIUS 119mm RIENSHAGEN CONNECTOR | CER2808 | |
| TBS5114-065 | IND | TOP MOUNTED SMITHFIX 8mm FEED PIPE6mm FEED PIPE(FORMED) - 6mm RETURN WITH NYLON EXTENSION | ||
| TBS5114-066 | IND | SMITHFIX 8mm FEEDPIPE AND6.35mm RETURN PIPE. 135 WINDING. REINSHAGEN 2-PIN CONNECTOR. 600-800 MICRON FUEL FILTER.CONNECTING HARNESS.160mm ARM RADIUS. BARREL FLOAT. | ||
| TBS5214-006W | LANDROVER | TYPE G78/0B. METAL BODY.SMITH FIX. SIDE MOUNTED. 70 DEGREE FLOAT ARM SWING WITH 5/6"FEED PIPE AND FILTER WITH WARNING LIGHT CONTACTS.EARTH RETURN. BLADE CONNECTORS. SHROUDED TERMINALS FEED &WARNING LIGHT. EARTH BLADE CONNECTORS. | PRC4510 | |
| TBS5214-010W | LANDROVER | G78/0B.BIMETAL RESISTANCE TYPE. TOP MOUNTED. EARTH RETURN. BLADECONNECTION. 70deg SWING. 5/16" FEED PIPE WITH FILTER.SMITHFIX. WARNING LIGHT (DIESEL) | TBS5214-010W | |
| TBS5214-014W | LANDROVER | G78/OB. METAL BODY. SMITH FIX. SIDE MOUNTED70deg FLOAT ARM SWING WITH 5/16" FEED PIPE & FILTER WITHWARNING LIGHT CONTACTS. EARTH RTN. BLADE CONNECTORS.SHROUDED TERMINALS FEED & WARNING LIGHT EARTH BLADE CONNECTO | PRC3049 | |
| TBS5232-003 | TRIUMPH | EUROPEAN CHARACTERISTIC RESISTANCE TYPE. SIDE MOUNTED.EARTH RETURN. BLADE CONNECTION. 70 DEG SWING. SMITHFIX.5/16" FEEDPIPE WITH FILTER (PETROL). 12 VOLTS.WARNING LIGHTS CONTACTS. ANTI-RATTLE RING. | TKC3408 | |
| TBS5232-006 | CLASSIC | TOP MOUNTED.EARTH RETURN. BLADE CONNECTION.70 DEG. SWING. SMITHFIX. 6mm EXTENSION ROD. 12 VOLTS.WARNING LIGHT CONTACTS. SHROUDED TERMINALS. | ||
| TBS5232-009 | LANDROVER | G78/OB TYPE. EUROPEAN RESISTANCE. SIDE MOUNTED. EARTH RETURNBLADE CONNECTION. 70 DEGREE SWING. SMITHFIX. 7.94 FEEDPIPE.12 VOLT. WARNING LIGHT CONTACTS. SHROUDED TERMINALS. | PRC3268 PRC8463 | |
| TBS5232-010 | LANDROVER | G78/0B.EURO RESISTANCE . TOP MOUNTED. 7.94 FEED PIPE.EARTH RETURN. BLADE CONNECTION. 70 DEGREE SWING. SMITHFIX.12 VOLT . WARNING LIGHT CONTACTS | 18PRC3196 | |
| TBS5232-015 | LANDROVER | G78/0B.EURO RESISTANCE . TOP MOUNTED. 7.95mm 5/16" FEED PIPE.EARTH RETURN. BLADE CONNECTION. 70 DEGREE SWING. SMITHFIX.12 VOLT . WARNING LIGHT CONTACTS | PRC4262 | |
| TBS5232-017 | LANDROVER | G78/0B.EURO RESISTANCE . SIDE MOUNTED. 7.94 FEED PIPE.EARTH RETURN. BLADE CONNECTION. 70 DEGREE SWING. SMITHFIX.12 VOLT . WARNING LIGHT CONTACTS.SHROUDED TERMINALS | PRC3268 | |
| TBS5414-000W | IND | G78/0B.BIMETAL RESISTANCE TYPE. TOP MOUNTED. INSULATED RETURN. BLADE CONNECTION. NORMAL PIVOT.70deg SWING. 5/16" FEED PIPE . | ||
| TBS5514-001 | IND | TRACTOR FUEL SENDER. BI-METAL RESISTANCE. TOP MOUNTED. 90 DEG SWING. EARTH RETURN. SMITHFIX. BLADE CONNECTION. | ||
| TBS5514-002W | IND | TRACTOR FUEL SENDER. BI-METAL RESISTANCE. TOP MOUNTED. 90 DEG SWING. EARTH RETURN. SMITHFIX. BLADE CONNECTION.1/4" RETURN PIPE | 344/384 | |
| TBS5514-007 | ASTONM | G63/OB BI-METAL RESISTANCE. TOP MOUNTED.EARTH RETURN. 90 DEGREE SWING. BLADE CONNECTION.SMITHFIX.6.35mm ROD WITH STIFFENING COLLAR. CLIP ON PLASTIC FLOAT. | K946184 | |
| TBS5514-012W | OTHER | G78/0B.BI-METAL RESISTANCE . TOP MOUNTED. EARTH RETURN. BLADE CONNECTION. 90 DEGREE SWING. SMITHFIX.10 VOLT REG. 9.53mm FEED AND RETURN PIPE. | ||
| TBS5514-018 | JAGUAR | BI-METAL RESISTANCE . SIDE MOUNTED. EARTH RETURN. 90 DEGREE SWING. SMITHFIX.10 VOLT REG. SHROUDED TERMINAL RED (LH TANK) | ||
| TBS5514-019 | CLASSIC | G78/0B.BI-METAL RESISTANCE . TOP MOUNTED. EARTH RETURN. BLADE CONNECTION (NATURAL SHROUDED). 90 DEGREE SWING. SMITHFIX.10 VOLT REG. 9.53mm FEED PIPE. | ||
| TBS5514-021 | JAGUAR | G78/OB BI-METAL RESISTANCE . SIDE MOUNTED. EARTH RETURN. 90 DEGREE SWING. SMITHFIX.10 VOLT REG. SHROUDED TERMINAL NATURAL (RH TANK) 1/4" DIAMETER ROD. FLAT FLOAT.JAG XJ6 SER 3 | DAC5498 | |
| TBS5514-022 | JAGUAR | G78/OB BI-METAL RESISTANCE . SIDE MOUNTED. EARTH RETURN. 90 DEGREE SWING. SMITHFIX.10 VOLT REG. SHROUDED TERMINAL RED (LH TANK) 1/4" DIAMETER ROD. FLAT FLOAT.JAG XJ6 1978 | DAC5499 | |
| TBS5514-023 | CLASSIC | G78 BI-METAL RESISTANCE . SIDE MOUNTED. EARTH RETURN. 90 DEGREE SWING. SMITHFIX.10 VOLT REG. SHROUDED TERMINAL .8mm OD FEED PIPE. CLIP ON PLASTIC FLOAT | ZKC6406 | |
| TBS5532-000 | IND | G63/OB BI-METAL RESISTANCE. TOP MOUNTED.EARTH RETURN. 90 DEGREE SWING. BLADE CONNECTION. | K948994 | |
| TBS5532-001 | IND | G78/W.EURO FUEL. BI-METAL RESISTANCE . TOP MOUNTED. BLADE CONNECTION. 90 DEGREE SWING. SMITHFIX.12/24 VOLT REG. 8mm FEED PIPE.6.35mm 9.55mm BREATHER TYPE | 704/20900 | |
| TBS5532-002 | IND | G78/W.EURO FUEL. BI-METAL RESISTANCE . TOP MOUNTED. BLADE CONNECTION. 90 DEGREE SWING. SMITHFIX.12/24 VOLT REG. 8mm FEED PIPE.6.35mm RETURN PIPE 9.55mm BREATHER PIPE | 704/22600 | |
| TBS5532-003 | IND | TOP MOUNTED. EARTH RETURN. SMITHFIX. 8mm FEED PIPE. 6mm RETURN PIPE.9mm BREATHER ALL FORMED.PIPE DEPTH 590-PIVOT-260-RADIUS 345 | 704/25500 | |
| TBS5532-004 | IND | TOP MOUNTED. EARTH RETURN. SMITHFIX. 8mm FEED PIPE. 8mm RETURN PIPE.9mm BREATHER ALL FORMED.PIPE DEPTH 590-PIVOT-260-RADIUS 345 | 704/30700 | |
| TBS5532-044 | IND | SIDE MOUNTED (BENT ROD), INSULATED RETURN, 80 DEGREE SWING.SMITHFIX.VDO CHARACTERISTICS | 716/29000 | |
| TBS5532-045 | IND | SIDE MOUNTED (BENT ROD), INSULATED RETURN, 80 DEGREE SWING.SMITHFIX.VDO CHARACTERISTICS | ||
| TBS5532-046 | OTHER | EARTH RETURN.FLOAT ARM RADIUS 178mm. 80 DEGREE SWING. 0-180OHM RESISTANCE. | ||
| TBS5814-000W | IND | G78/0B.BI-METAL RESISTANCE . RATIONALISED.TOP MOUNTED. INSULATED RETURN. BLADE CONNECTION. 90 DEGREE SWING. NORMAL PIVOT. FEED PIPE 5/16" DIAMETER | ||
| TBS5832-001 | IND | EUROPEAN CHARACTERISTIC RESISTANCE TYPE. TOP MOUNTED.INSULATING RETURN. NORMAL PIVOT. 90 DEG SWING. SMITHFIX.FEED AND RETURN PIPE 5/16" DIAMETER. | ACU6572 | |
| TBS9000-000W | JAGUAR | BI-METAL RESISTANCE . EARTH RETURN. 90 DEGREE SWING. SMITHFIX.BLADE CONNECTION | 90299090 | |
| TBS9000-001W | JAGUAR | BI-METAL RESISTANCE . EARTH RETURN. 90 DEGREE SWING. SMITHFIX.BLADE CONNECTION | 90299090 | |
| TF1001-508A | MINI | G63/8 TYPE. BI-METAL RESISTANCE. NORMAL PIVOT. 6 HOLE FIXING. | ARA976 | |
| TF1104-040 | JAGUAR | BI-METAL RESISTANCE TYPE.TOP MOUNTED. EARTH RETURN. 6 HOLE FIXING.BLADE CONNECTION. 70 DEG. SWING.NORMAL PIVOT.WARNING LIGHT CONTACT. | 90299090 | |
| TF1104-049 | JAGUAR | BI-METAL RESISTANCE TYPE.TOP MOUNTED. EARTH RETURN. 6 HOLE FIXING.BLADE CONNECTION. 70 DEG. SWING.NORMAL PIVOT.WARNING LIGHT CONTACT. JAG E TYPE C20429 | 90299090 | |
| TFS9900-000 | OTHER | METAL TANK UNIT | ||
| TFS9900-001 | CLASSIC | BI-METAL RESISTANCE TYPE.SIDE MOUNTED WITH FEED PIPE.SHROUDED TERMINAL. | ||
| TFS9915-000R | CLASSIC | G78/9B BI-METAL RESISTANCE . SPECIAL SIDE SWINGER. EARTH RETURN. 70 DEGREE SWING. BLADE CONNECTION.10 VOLT REG. CLIP ON PLASTIC FLOAT | XNB10007 | |
| TFS9915-001 | MINI | BI-METAL RESISTANCE . SPECIAL SIDE SWINGER. EARTH RETURN. 70 DEGREE SWING. BLADE CONNECTION.10 VOLT REG. CLIP ON PLASTIC FLOAT | XNB100380X | |
| TM1113-002 | IND | (TOP LEVEL ONLY -STOCK IN COMPD.) | ||
| TM1113-006 | IND | G63/3. VOLTS 24 TYPE ORDINARY.RATIONALISED (INTERIM). 6 HOLE FIXING. SIDE MOUNTED. | FV839436 | |
| TM1113-009 | IND | G63 6 HOLE FIXING. SIDE MOUNTED. EARTH RETURN | ||
| TM1412-003 | IND | G63/3. 12 VOLT.6 HOLE FIXING. INSULATED RETURN.NORMAL PIVOT. | ||
| TM1412-004 | IND | G63/3. 12 VOLT.6 HOLE FIXING. INSULATED RETURN.NORMAL PIVOT. | ||
| TM1412-005 | IND | G63/3. 12 VOLT.6 HOLE FIXING. INSULATED RETURN.NORMAL PIVOT. |
